Mid-Size Top Dressers
Durable, spreads wet/dry material, self-aligning V-track system and hydraulic controls.
Model 3100 Turf Tiger Cub Top Dresser
1.8 cu. yard capacity
Model 3200 Turf Tiger Cub Top Dresser
2.3 cu. yard capacity
Description
The Turf Tiger Cub 3100 & 3200
These topdressers are the fastest, most affordable high-capacity top dressers in the world of sports turf. Cut top dressing time in half without compromising precision, speed, accuracy or versatility.
Our mid-size top dressers spread wet or dry materials twice as fast in widths up to 8 feet without compromising precision. Available in two sizes at 1.8 and 2.3 cubic yard capacities, there’s no other topdresser as affordable and efficient for limited budgets at schools, golf courses, and parks and recreation departments.
User-friendly Turf Tiger Cubs are more versatile than any other topdresser of its kind thanks to our exclusive Saber Tooth beater technology with a metering gate that easily adjusts high volume material flow. The apron conveyor is designed for guaranteed tracking without slipping, while the heavy-duty drive system provides years of trouble free service. All of these features add up to the best value in sports turf top dressing with precision, power and speed.
Features
Standard
- Choice of 1.8 or 2.3 cubic yard heaped capacity
- Application depth range from dusting up to 1 inch in single pass
- All steel, poly floor
- No-clog Saber Tooth™ beater attachment
- #5 conveyor – T-rod apron chain
- Heavy-duty Drive system
- Apron drive – gear box / chain reduction
- Metering gate
- Beater drive – gear box / chain
- Beater Bearings – Sealed ball bearings
- Turf (26.5 x 14 x 12, 4 ply) ground pressure, loaded 18 psi.
- Powder coating body finish
Model 3100 Specifications
Capacity, Struck
- 1.0 yd
Capacity Heaped
- 1.8 yd
Capacity Weight
- 3,000 lbs.
Body Dimensions
- 7′ – 5.5″l x 37″w x 17.5″h
Overall Product Dimensions
- 11′ – 0″l x 70w x 51″h
Loading Height
- 43″
Weight
- 1,140 lbs.
Tractor Weight
- 2,000 lbs.
HP Required
- 25HP plus
Model 3200 Specifications
Capacity, Struck
- 1.3 yd
Capacity Heaped
- 2.3 yd
Capacity Weight
- 3,750 lbs.
Body Dimensions
- 9′ – 6″l x 37″w x 17.5″h
Overall Product Dimensions
- 13′ – 0″ l x 70″ w x 51″ h
Weight
- 1,300 lbs.
Tractor Weight
- 2,250 lbs.
HP Required
- 30HP plus
Application
The Turf Tiger Cub 3100 & 3200 handle these wet or dry materials
- Sand/peat top dressing
- Infield mixes
- Compost
- Grass clippings
- Crumb rubber
- Synthetic turf infill
- Pelletized Lime
- Wood chips
- De-icing materials

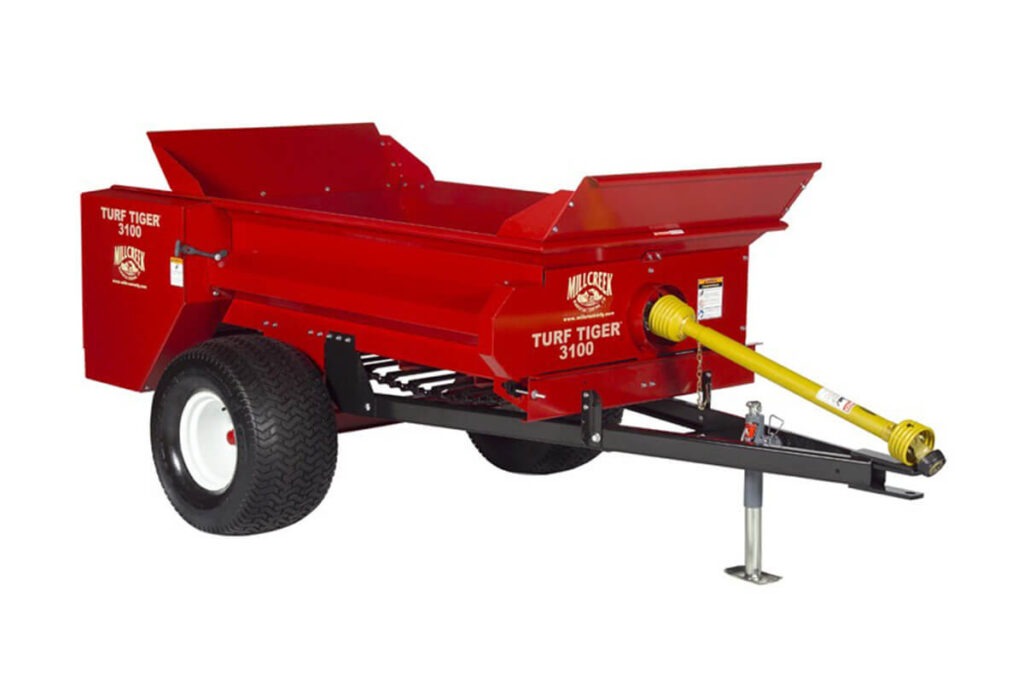

Model 3100 Images
Model 3200 Images
