Greens Top Dressers
Ideal for parks, golf courses, and fields, this heavy-duty top dresser is designed for versatility across a number of applications.

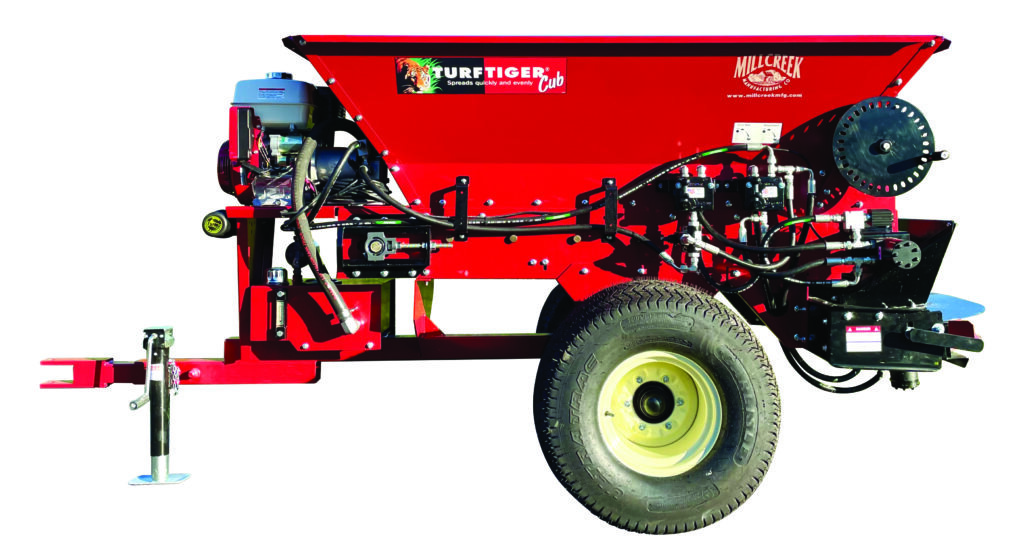

Model 1100TD Tow Behind Top Dresser
1.5 cu. yd. capacity heaped

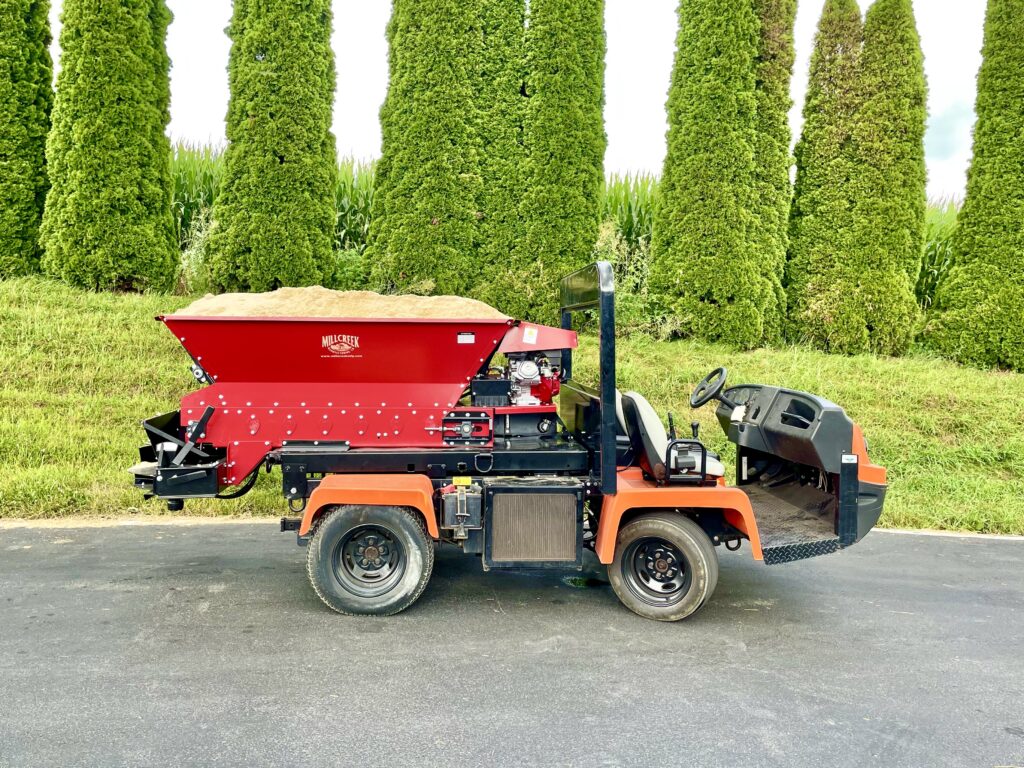

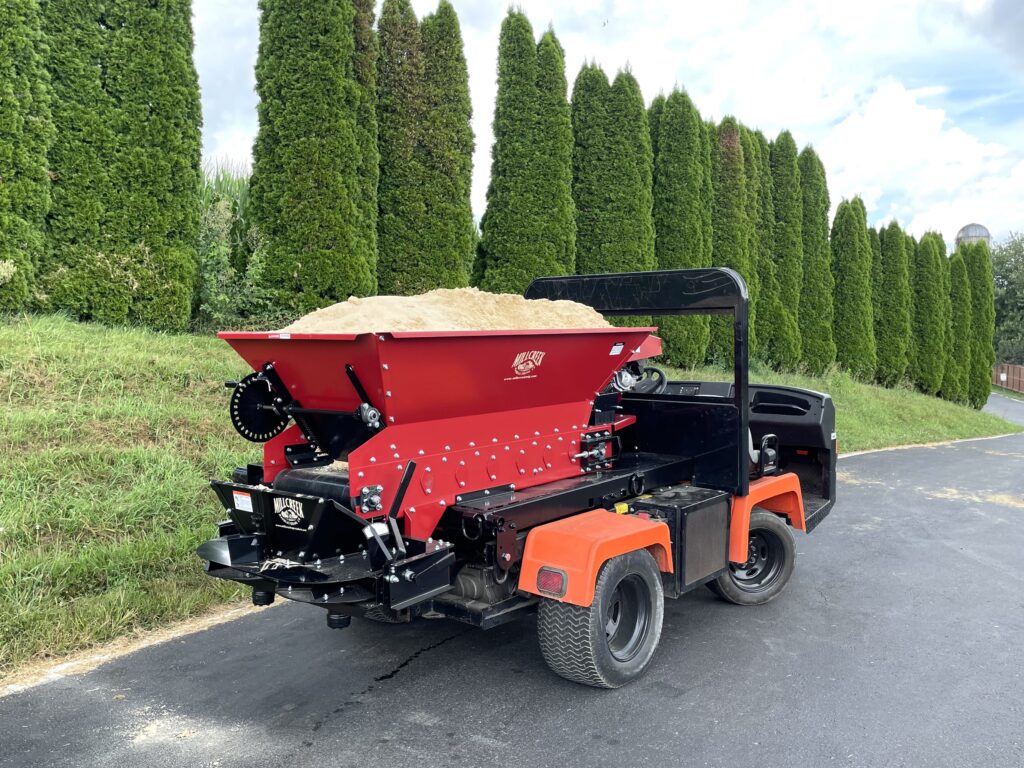

Model 1100TD Truck Mount Top Dresser
1.5 cu. yd. capacity heaped
Description
Introducing the Model 1100TD Top Dressers
This unit was developed specifically for golf courses, but can be used in many other operations as well. With up to 30 feet of coverage and adjustable tilt, the spinners help you get the job done quickly. Available in either tractor hydraulic or engine drive, this unit can be towed by lots of different vehicles, and the truck mount is compatible with the Jacobsen/Cushman Truckster, Toro Workman, and John Deere Pro Gator. It’s extremely versatile, and is a great option for parks and smaller sports fields as well.
Specs
Capacity Heaped
- 40 cu. ft.
Max Payload
- 3,000 lbs.
Body Dimensions
Length
- 76″ (top)
- 50″ (bottom)
Width
- 50″ (top)
- 20″ (bottom)
Height
- 22″
Overall Product Dimensions
- 127″l x 55″w x 54.5″h
Loading Height
- 55″
Weight
- 1050 lbs. (UVM unit & tractor units)
- 1550 lbs. (engine units)
Required HP
- 20 HP and greater
Tractor Weight
- 1500 lbs.
